[机器学习] 作业壹 2022Spring-hw1 COVID-19 Cases Prediction

Download Data

1
2
3

!gdown https://drive.google.com/uc?id=1kLSW_-cW2Huj7bh84YTdimGBOJaODiOS --output covid.train.csv

!gdown https://drive.google.com/uc?id=1iiI5qROrAhZn-o4FPqsE97bMzDEFvIdg --output covid.test.csv

Data: 118 features (id + 37 + 16 * 5, label included)

Import Packages

import torch
import torch.nn as nn
from torch.utils.data import DataLoader, Dataset, random_split
from torch.utils.tensorboard import SummaryWriter

import numpy as np
import math

import pandas as pd
import csv
import os

import matplotlib.pyplot as plt
from matplotlib.pyplot import figure

Same Seed

保证实验的可重复性

def same_seed(seed):
    # 使用确定性的卷积算法
    torch.backends.cudnn.deterministic = True
    # 禁止为卷积层选择最优算法
    torch.backends.cudnn.benchmark = False
    np.random.seed(seed)
    torch.manual_seed(seed)
    if torch.cuda.is_available():
        torch.cuda.manual_seed(seed)

Dataset

def data_set_split(data_set, valid_ratio, seed):
    valid_data_size = int(len(data_set) * valid_ratio)
    train_data_size = len(data_set) - valid_data_size
    train_set, valid_set = random_split(data_set, [train_data_size, valid_data_size], generator=torch.Generator().manual_seed(seed))
    return np.array(train_set), np.array(valid_set)

def select_feature(train_set, valid_set, test_set):
    label_train_set = train_set[:, -1]
    label_valid_set = valid_set[:, -1]

    feature_train_set = train_set[:, :-1]
    feature_valid_set = valid_set[:, :-1]
    feature_test_set = test_set

    return feature_train_set, feature_valid_set, feature_test_set, label_train_set, label_valid_set

class COVID19Dataset(Dataset):
    def __init__(self, features, targets=None):
        if targets is None:
            self.targets = targets
        else:
            self.targets = torch.FloatTensor(targets)
        self.features = torch.FloatTensor(features)

    def __getitem__(self, idx):
        if self.targets is None:
            return self.features[idx]
        else:
            return self.features[idx], self.targets[idx]

    def __len__(self):
        return len(self.features)

Neural Network Model

class my_model(nn.Module):
    def __init__(self, input_dim):
        super(my_model, self).__init__()
        self.layers = nn.Sequential(
            nn.Linear(input_dim, 64),
            nn.ReLU(),
            # nn.Linear(64, 64),
            # nn.ReLU(),
            # nn.Linear(64, 64),
            # nn.ReLU(),
            # nn.Linear(64, 64),
            # nn.ReLU(),
            # nn.Linear(64, 32),
            # nn.ReLU(),
            nn.Linear(64, 1),
        )

    def forward(self, x):
        x = self.layers(x)
        x = x.squeeze(1)
        return x

Hyper Parameters

device = 'cuda' if torch.cuda.is_available() else 'cpu'
config = {
    'seed': 7,
    'valid_ratio': 0.2,
    'n_epochs': 5000,
    'batch_size': 256,
    'lr': 1e-5,
    'early_stop': 800,
    'save_path': './models/model.ckpt'
}

Training Progress

1 2	loss_record_train = [] loss_record_valid = []

def train(train_loader, valid_loader, model, config, device):
    criterion = nn.MSELoss(reduction='mean')
    optimizer = torch.optim.SGD(model.parameters(), lr=config['lr'], momentum=0.9)
    writer = SummaryWriter()
    if not os.path.exists('./models'):
        os.mkdir('./models')
    n_epochs = config['n_epochs']
    best_loss = math.inf
    step = 0
    early_stop_count = 0

    for epoch in range(n_epochs):
        model.train()
        loss_record = []
        for x, y in train_loader:
            optimizer.zero_grad()
            x, y = x.to(device), y.to(device)
            pred = model(x)
            loss = criterion(pred, y)
            loss.backward()
            optimizer.step()
            step += 1
            loss_record.append(loss.detach().item())
            loss_record_train.append(loss.detach().item())
        mean_train_loss = sum(loss_record) / len(loss_record)
        writer.add_scalar('loss/train', mean_train_loss, step)

        model.eval()
        loss_record = []
        for x, y in valid_loader:
            x, y = x.to(device), y.to(device)
            with torch.no_grad():
                pred = model(x)
                loss = criterion(pred, y)
            loss_record.append(loss.item())

        mean_valid_loss = sum(loss_record) / len(loss_record)
        loss_record_valid.append(mean_valid_loss)
        writer.add_scalar('loss/valid', mean_valid_loss, step)
        print(f'Epoch [{epoch+1}/{n_epochs}]: Train loss: {mean_train_loss:.4f}, Valid loss: {mean_valid_loss:.4f}]')

        if mean_valid_loss < best_loss:
            best_loss = mean_valid_loss
            torch.save(model.state_dict(), config['save_path'])
            print(f'Saving model[{epoch+1}/{n_epochs}] with valid loss {best_loss:.3f}')
            early_stop_count = 0
        else:
            early_stop_count += 1

        if early_stop_count > config['early_stop']:
            print('Early stopping')
            break

Prepare

same_seed(config['seed'])
train_data = pd.read_csv('./covid.train.csv').drop(columns=['id']).values
test_set = pd.read_csv('./covid.test.csv').drop(columns=['id']).values
train_set, valid_set = data_set_split(train_data, config['valid_ratio'], config['seed'])
feature_train, feature_valid, feature_test, label_train, label_valid = select_feature(train_set, valid_set, test_set)

train_dataset = COVID19Dataset(feature_train, label_train)
valid_dataset = COVID19Dataset(feature_valid, label_valid)
test_dataset = COVID19Dataset(feature_test)

train_loader = DataLoader(train_dataset, batch_size=config['batch_size'], shuffle=True)
valid_loader = DataLoader(valid_dataset, batch_size=config['batch_size'], shuffle=True)
test_loader = DataLoader(test_dataset, batch_size=config['batch_size'], shuffle=False)

Start

1 2	model = my_model(input_dim=feature_train.shape[1]).to(device) train(train_loader, valid_loader, model, config, device)

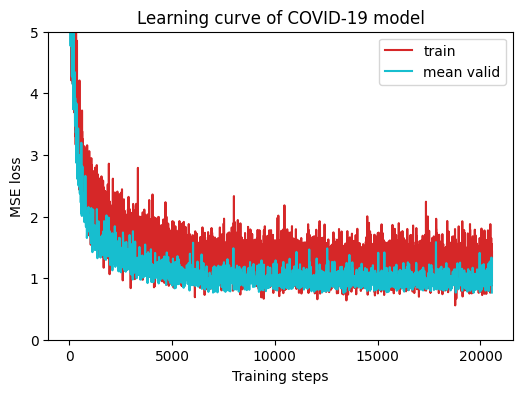

Plot Learning Curve

def plot_learning_curve():
    total_steps = len(loss_record_train)
    x_1 = range(total_steps)
    x_2 = x_1[::len(loss_record_train) // len(loss_record_valid)]
    figure(figsize=(6, 4))
    plt.plot(x_1, loss_record_train, c='tab:red', label='train')
    plt.plot(x_2, loss_record_valid, c='tab:cyan', label='mean valid')
    plt.ylim(0.0, 5.)
    plt.xlabel('Training steps')
    plt.ylabel('MSE loss')
    plt.title('Learning curve of COVID-19 model')
    plt.legend()
    plt.show()

plot_learning_curve()

Predict

def predict(test_set, model, config):
    model.eval()
    preds = []
    for x in test_loader:
        x = x.to(device)
        with torch.no_grad():
            pred = model(x)
            preds.append(pred.detach().cpu())
    preds = torch.cat(preds, dim=0).numpy()
    return preds

def save_pred(preds, file):
    with open(file, 'w') as fp:
        writer = csv.writer(fp)
        writer.writerow(['id', 'tested_positive'])
        for i, p in enumerate(preds):
            writer.writerow([i, p])

model = my_model(input_dim=feature_train.shape[1]).to(device)
model.load_state_dict(torch.load(config['save_path']))
preds = predict(test_loader, model, config)
save_pred(preds, './pred.csv')
